Structural insulated panels (SIPs), also called foam-core panels or stress-skin panels, are sheets of foam insulation sandwiched between oriented strand board or another type of composition wood.

Unlike traditional wood construction, SIPs use no studs in the construction process. These strong, super-insulated structural building components can be used for floors, walls and roof.

In this video: An industry expert demonstrates SIPs and how they can integrate into your home.

How it works

SIP contractors develop a design with your home builder. In the factory, these designs are transferred to panels up to 24 feet wide and eight feet fall - using such large components minimizes the number of joints where air can leak into your home.

After the panels are cut to the right shape, including window and door openings, they're shipped to the building site. The panels arrive lettered and numbered, allowing for quick installation.

Energy savings

The panels offer an R-value of between four and six per inch, depending on the type of foam used. In fact, SIP walls can be built to a lower R-value because the panels are significantly more airtight than stud walls.

Other benefits

SIPs also offer a few more advantages over standard framing:

  • They're shipped pre-assembled from the factory, meaning the shell of your home can be constructed in just a few hours rather than a few days.
  • Structural insulated panels - installationThey're three times stronger than conventional stud walls.
  • They can be cut to any shape, allowing for greater design flexibility.
  • The insulating material is protected by the wood panels, reducing the risk of moisture damage.
  • The panels are built to your contractor's specifications, so construction waste is dramatically reduced.
  • The composite wood in the panels uses recycled wood chips instead of newly-cut lumber.

Older types of SIPs did have concerns with fire safety and insect damage, but improved manufacturing techniques, along with proper installation, have eliminated the problems.

Costs

While SIPs cost more than traditional building materials, they require less labor to install, making the total construction cost about the same.

More from this category

Habitat for Humanity

Volunteers joining hands

Habitat for Humanity is an organization that provides simple, sturdy homes. Learn how energy efficiency is a key factor in building these homes.

learn more

Green home construction

Building materials, blueprints and paint chips

More builders are offering sustainable choices in new home construction. Find out what's available and how it impacts the earth and the bottom line.

learn more

Building an energy-smart house

Pete and Megan talking with homeowners

Hear from real homeowners and builders who made energy efficiency a priority.

learn more



Framing options

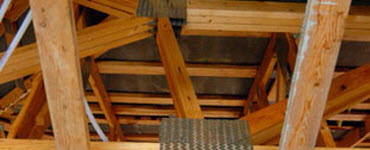

Man installing steel framing

You have energy efficient and sustainable options when it comes to framing your new home.

learn more

Energy efficient kitchen remodel

Pete and couple standing in remodeled kitchen

This kitchen remodel features a new window, energy-efficient lighting, new appliances and side-wall insulation.

learn more

Historic preservation

Boy and grandmother on front porch

A preservation expert shares how to restore an older home economically and energy efficiently.

learn more

Net Zero Community

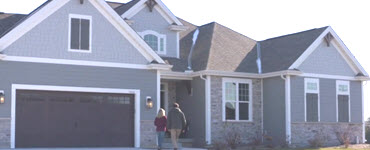

Two people walking into a new home

Check out a new neighborhood concept and see how one builder is changing the way homes are built with a goal to use zero energy.

LEARN MORE

Talk to your utilities

Utility worker with an electric meter

Before you break ground on a new house, give your utility companies a call. They can help you avoid unnecessary expenses and construction delays.

learn more

Decoding building requirements

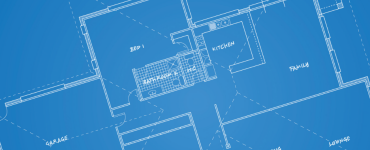

house blueprints
